BC660KGLAA-I03-SNASA

1. BC660KGLAA-I03-SNASA – LPWA/ Compact NB-IoT Module

2a- Category – NB-IoT Family

2b. Sub-Category – BC660 Series

3. Remote Monitoring, Data Logger, Smart Meters.

4. Speed Max – 127 Kbps (DL) / Max 158.5 Kbps (UL)

5. No. Of Pins: 58 pins, 44 LCC pins and 14 LGA pins.

6. Supply Voltage: 2.2–4.3 V, typical. 3.3 V DC

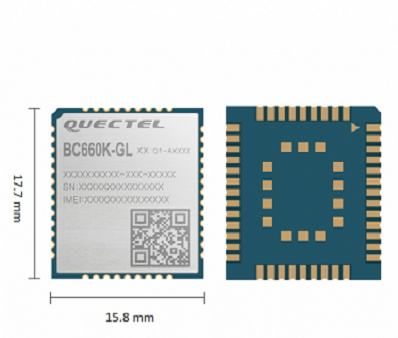

7. Dimensions : 17.7 mm × 15.8 mm × 2.0 mm

8. Weight: Approx. 1.2g

9. Network – LTE Cat NB2

10. Regulatory : RoHS Complaint, CE / RCM / PTCRB / FCC/ GCF

11. Extended Temperature Range: -40°C ~ +85°C

12. Frequency Bands :

Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B17/ B18/B19/B20/B25/B28/B66/B70/B85

13. Supply Source : V-DC
